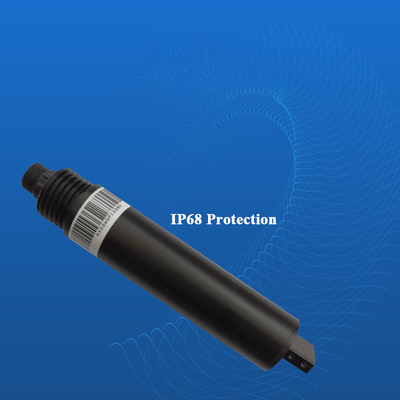

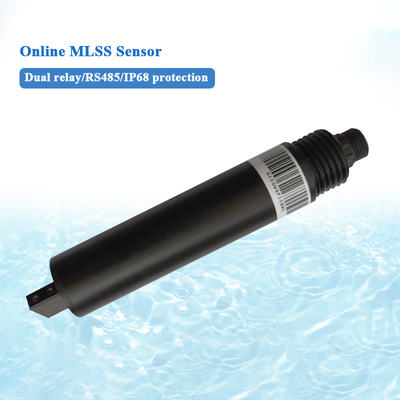

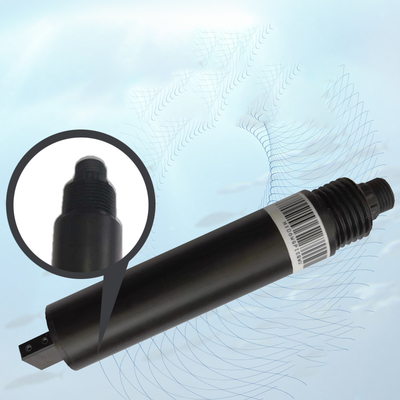

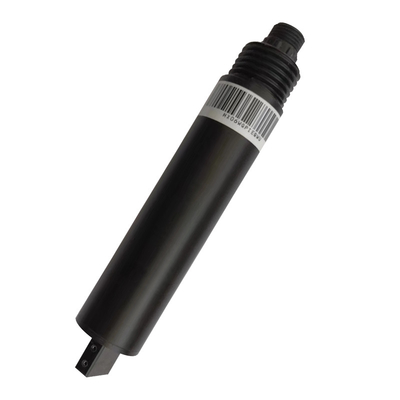

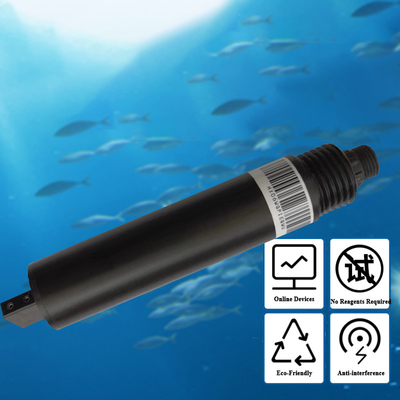

High Range Digital Turbidity Nephelometric Meter with 0.4W Power and Manual
Product Details:
| Place of Origin: | China |
| Brand Name: | BS |
Payment & Shipping Terms:
| Minimum Order Quantity: | 5 pieces |
|---|---|
| Price: | Discussion |
| Packaging Details: | A5 standard export carbon |
| Supply Ability: | 10000 Piece/Pieces per Month |
|
Detail Information |
|||
| Features: | Convenient, Fast, Stable | Warranty: | 1 Years |
|---|---|---|---|
| Customized Support: | OEM, ODM | Product Name: | Online Suspended Solids Analyzer |
| Protocol: | Modbus RTU | Accuracy: | ±2%FS |
| Range: | 0-20000/45000/120000mg/L | Resolution: | 0.01~1 Mg/L, Depending On Different Rang |
| Power: | 12V/24V DC, 0.4W | ||
Product Description
Specification
|
Working principle
|
Scattered light method
|
|
Measuring range
|
0～20.000g/L
|
|
Resolution
|
0.001g/L,0.1℃
|
|
Accuracy
|
±5% (depending on sludge homogeneity)
|
|
Calibration
|
Two point calibration
|
|
Signal output
|

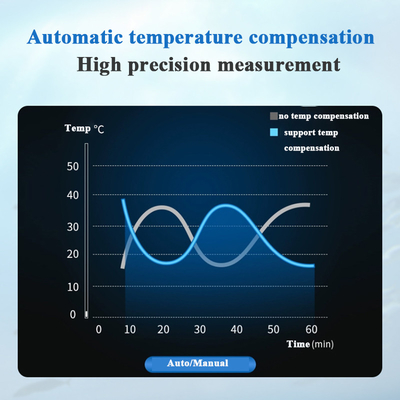

Automatic temperature compensation (Pt1000)
|
|
Signal output
|
RS-485(Modbus/RTU),4-20mA
|
|
Working temperature
|
0～50℃,<0.2MPa
|
|
Storage temperature
|
-5～65℃
|
|
Installation
|
Submersion Mount, 3/4NPT Pipe Thread
|
|
Cable length
|
5 meters, other lengths can be customized
|
|
Calibration
|
<0.3W@12V
|
|
Power supply
|
12～24VDC
|
|
Protection grade
|
IP68
|
Product Description
FEATURES: 1) Scattered light principle, built-in temperature sensor 2) Support RS-485, Modbus/RTU protocol 3) Optical fiber structure, strong resistance to external light interference 4) Infrared LED light source, high stability 5) IP68 protection, water depth up to 20 meters 6) Convenient, fast, stable and easy to maintain APPLICATIONS: Environmental protection Agriculture Aquaculture Water conservancy Sewage treatment
