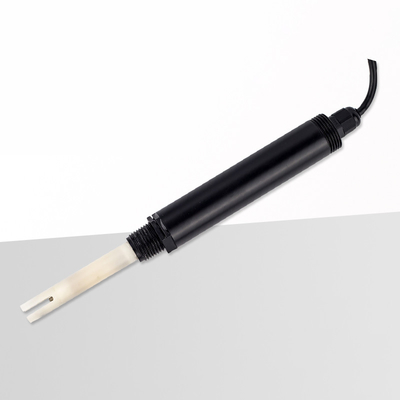

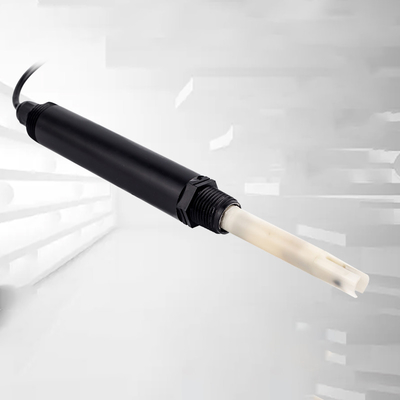

7-24VDC Operating Voltage Aquaculture RS485 Water EC Transmitter for Water Monitoring
Product Details:
| Place of Origin: | Henan, China |
| Brand Name: | BING SHENG |
Payment & Shipping Terms:
| Minimum Order Quantity: | 5 pieces |
|---|---|
| Price: | Discussion |
|
Detail Information |
|||
| Warranty: | 1 YEAR | Customized Support: | OEM, ODM |
|---|---|---|---|
| Working Principle: | Four-pole Graphite Electrode Method | Measurement Accuracy: | ±1.0%FS |
| Response Time: | <30s | Measuring Range: | 0.2~400.0uS/cm, 2~10000uS/cm, 20uS/cm~100.0mS/cm |
| Communication Interface: | RS485 | Resolution: | 0.01uS/cm; 0.01mS/cm |
| Operating Temperature: | 0~60℃ | Operating Humidity: | ≤85%RH |
| Repeatability: | <1% | Operating Voltage: | 7-24VDC |
Product Description
Product Description
Features:
* Online and real-time monitoring
* With temperature compensation * Conductivity measuring needle * It is easy to operate and highly reliable * Equipped with high-precision probes * RS485 and 4-20mA output (customizable)
Application:
Environmental protection,aquaculture,Water source monitoring,Sewage treatment,Oil & Gas Pipeline Corrosion Monitoring,environmental monitoring
Measuring medium | liquid |
principle | Frequency conversion method |
Probe material | ABS |
Ingress protection | IP68 |

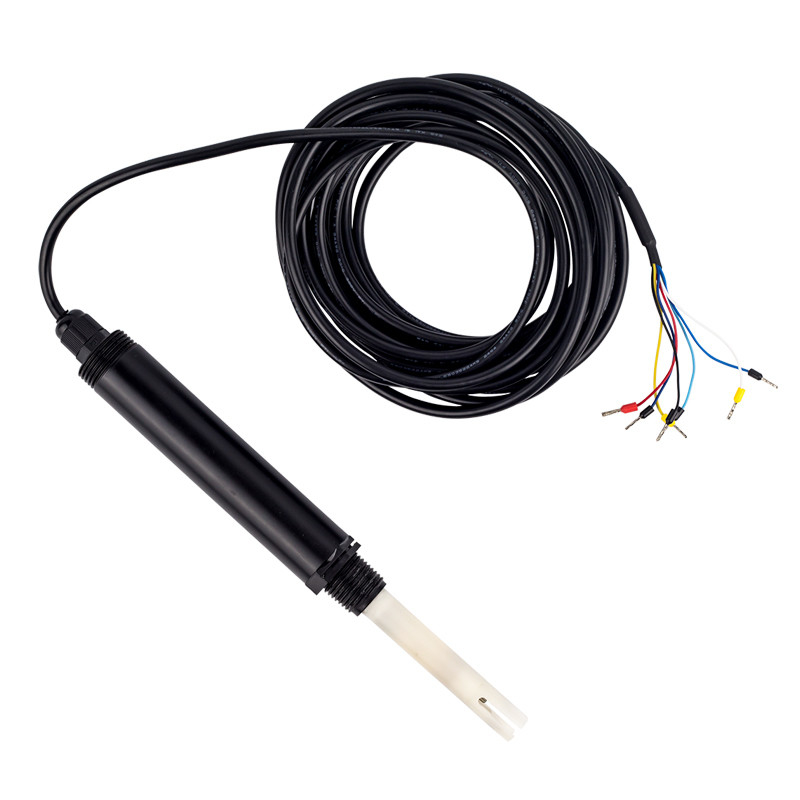

Cable length Default value | 5m |
Temperature compensation | Automatic compensation |
