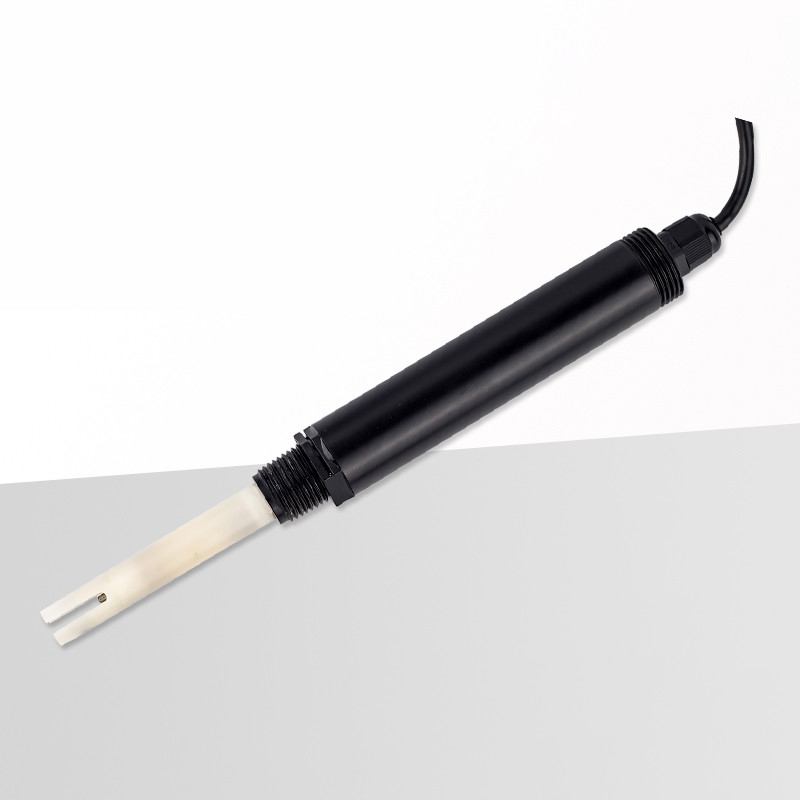

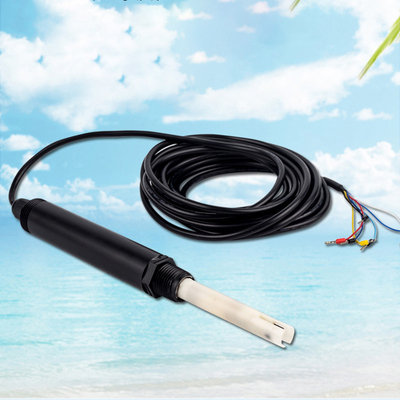

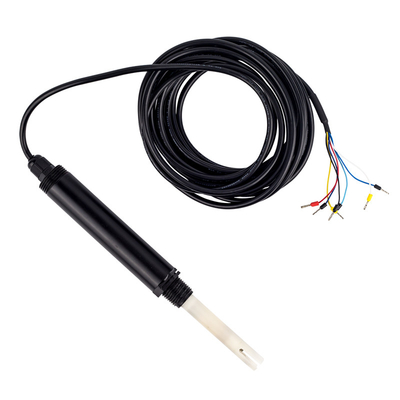

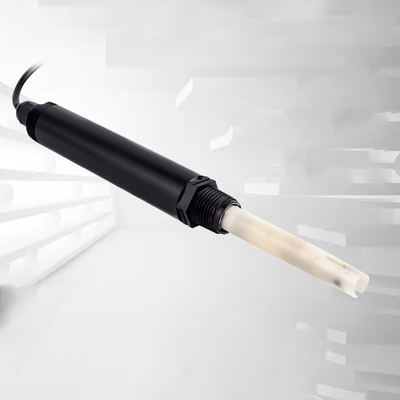

Measuring Range 0.2-400.0uS/cm Online Industrial Electric Conductivity Probe with RS485
Product Details:
| Place of Origin: | Henan, China |
| Brand Name: | BING SHENG |
Payment & Shipping Terms:
| Minimum Order Quantity: | 5 pieces |
|---|---|
| Price: | Discussion |
| Supply Ability: | 10000 Piece/Pieces per Month |
|
Detail Information |
|||
| Warranty: | 1 YEAR | Customized Support: | OEM, ODM |
|---|---|---|---|
| Working Principle: | Four-pole Graphite Electrode Method | Measurement Accuracy: | ±1.0%FS |
| Response Time: | <30s | Measuring Range: | 0.2~400.0uS/cm, 2~10000uS/cm, 20uS/cm~100.0mS/cm |
| Communication Interface: | RS485 | Resolution: | 0.01uS/cm; 0.01mS/cm |
| Operating Temperature: | 0~60℃ | Operating Humidity: | ≤85%RH |
| Repeatability: | <1% | Operating Voltage: | 7-24VDC |
Product Description
Product Description
Features
Online and real-time monitoring
With temperature compensation Conductivity measuring needle It is easy to operate and highly reliable Equipped with high-precision probes RS485 and 4-20mA output (customizable)
Application
environmental protection aquaculture Water source monitoring Sewage treatment Oil & Gas Pipeline Corrosion Monitoring environmental monitoring
Measuring medium | liquid |
principle | Frequency conversion method |
Probe material | ABS |
Ingress protection | IP68 |
Cable length Default value | 5m |
Temperature compensation | Automatic compensation |
