IP68 Rated Underground Waterlogging Detector for Solar Powered Water Level Monitoring
Product Details:
| Place of Origin: | China |
| Brand Name: | BS |
| Model Number: | BSK-GA-D2038 |
Payment & Shipping Terms:
| Price: | Discussion |
|---|---|
| Packaging Details: | A5 standard export carbon |
| Supply Ability: | 10000 Piece/Pieces per Month |
|
Detail Information |
|||
| Grade: | Industrial | Warranty: | 1 Years |
|---|---|---|---|
| Customized Support: | OEM, ODM | Product Name: | Liquid Level Instrument |
| IP Grade: | IP68 | Serial: | 2 Group RS232 & 1 Group RS485 |
| Solar Charging: | Built-in Charging Module | Operating Temperature: | -25℃~+60℃ |
| Keywords: | Buried Liquid Level Monitor | ||
Product Description
Product Description
Product name | Road water monitoring instrument 304 stainless steel urban waterlogging buried water monitoring station |

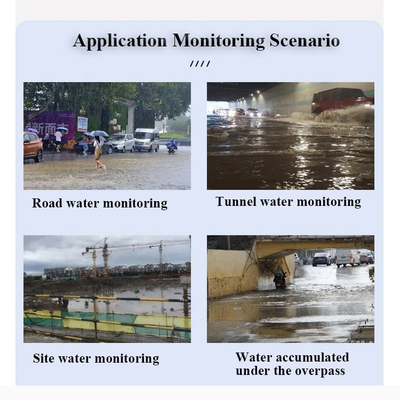

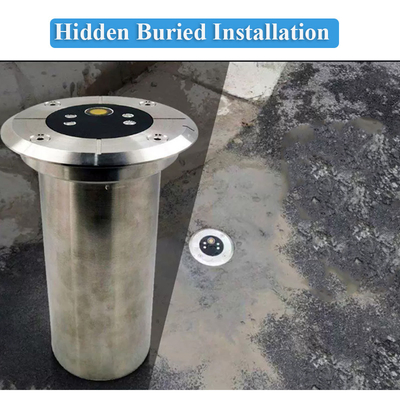

Dburied liquid level monitor is small in size, and can be embedded in the road surface to achieve water monitoring, which can be integrated with roads, Bridges and other projects, and can obtain accurate waterlogging monitoring data in the first time. APPLICATIONS: municipal traffic roads, residential areas, low-lying areas, underground parking lots, logistics parks and other scenes.
Specification
Product model | BSK-GA-D2038 |
Product name | Road water telemetry terminal |
Operating voltage | built-in (non-rechargeable) lithium battery 2 (2*19000MAH/3.6V) |
Input signal | sonar (underwater ultrasonic) and conductivity dual mode |
Measuring range | 0-1M(Wireless signal penetration problem, select in the case of deep water Other sensors, such as: ultrasonic, static pressure, etc.) |
Dead zone | better than 40 |
Accuracy | Accuracy class 2%，Temperature drift range from 0°C to +60°C: the change is less than +0.5%/10°C，Position Influence The installation position does not affect the zero point |
Automatic temperature compensation range | 0~99.9°C, 250°C as the reference temperature |
Power consumption: | standby current ≤80MA, average data transmission current ≤150MA |

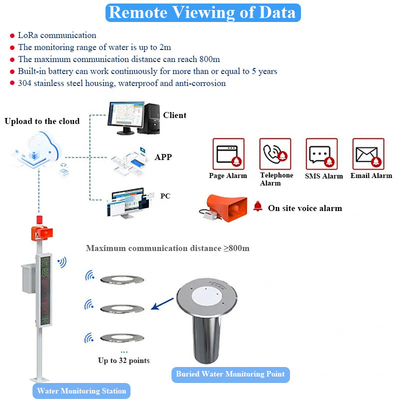

Function | Through remote setting (computer, mobile phone):IP address, port, launch interval, sleep time and other parameters;Perennial water area: Intelligent amplitude can be turned off to improve battery life; Support remote upgrade |
Launch interval | 60MIN1 measurement 1 transmission |
Battery life | about 24 months (60MIN upload times) |
Enclosure protection | IP68 |
