ODM Supported Digital RS485 Online Ion Selective Electrode Sensor for Water Monitoring
Product Details:
| Place of Origin: | China |
| Brand Name: | BS |
Payment & Shipping Terms:
| Minimum Order Quantity: | 5 pieces |
|---|---|
| Price: | Discussion |
|
Detail Information |
|||
| Warranty: | 1 Years | Customized Support: | OEM, ODM |
|---|---|---|---|
| Product Name: | Chloride Ion Selective Sensor | Principle: | Industrial On-line Electrode Method |
| Output Signal: | Support RS-485, MODBUS Protocol | Temperature Measurement Range: | -10.0~110.0 ℃ |
| Ion Concentration Measurement Range: | 0.000-20000ppm | Resolution: | 0.001 Ppm;0.1C; |
| Measurement Accuracy: | ± 0.5% FS;±0.5C | Working Power Supply:: | 9-27VDC |
| Temperature Compensation: | Automatic/manual | ||
Product Description
Specification
RS485 Online Water Ammonia Calcium Nitrate Nitrite Fluoride Chloride Ion Sensor
specifications | Product Name | online chloride ion sensor |
Measurement range: | 0.000-20000ppm | |
Resolution | 0.001 ppm | |
Measurement accuracy | ± 0.5% FS | |
Measurement range | -10.0~110.0 ℃ | |
Resolution | 0.1C | |
Measurement accuracy | ± 0.5C | |
Temperature type | Thermistor NTC10K | |
Temperature compensation: | automatic/manual | |
Data transmission | RS-485 | MODBUS-RTU communication protocol |
Working power supply | 9-27VDC | |
Isolation strength | 2500Vrms | |
Product power | approximately 0.5W | |

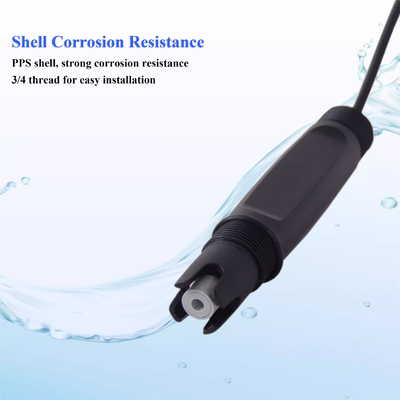

Product material | PPS shell | |

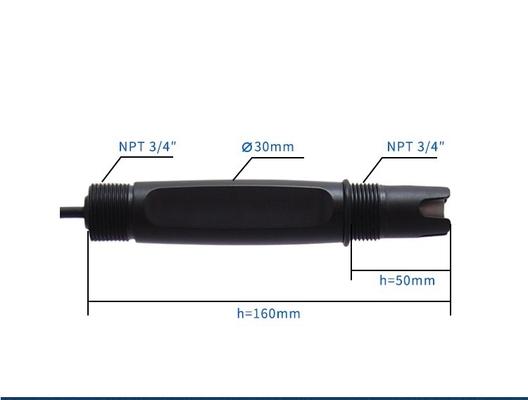

Installation method | 3/4 inch front and rear threads | |
Application | Industrial water, environmental protection, etc. |
Product Description
* Digital sensor, RS-485 output, support MODBUS
* Unaffected by transmission distance for better stability
* Built-in temperature sensor, automatic temperature compensation
* Unaffected by transmission distance for better stability
* Built-in temperature sensor, automatic temperature compensation
Product advantages: 1. Chloride ion single electrode and composite electrode are solid membrane ion selective electrodes, used to test free chloride ions in water, which can be fast, simple, accurate and economical.
2.The design adopts the principle of single-chip solid ion selective electrode, with high measurement accuracy
3.PTEE large-scale seepage interface, not easy to block, anti-pollution Suitable for wastewater treatment in the semiconductor industry, photovoltaics, metallurgy, etc. and pollution source discharge monitoring 4. 1. The patented chloride ion probe, with an internal reference fluid at a pressure of at least 100KPa (1Bar), seeps extremely slowly from the microporous salt bridge. Such a reference system is very stable and the electrode life is longer than the ordinary industrial electrode life.
5. Easy to install: NPT3/4 pipe thread for easy submersible installation or installation in pipes and tanks
6.High-quality imported single chip, accurate zero point potential without drift
7.Double salt bridge design, longer service life.
