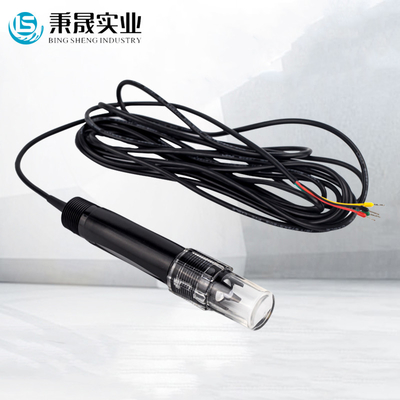

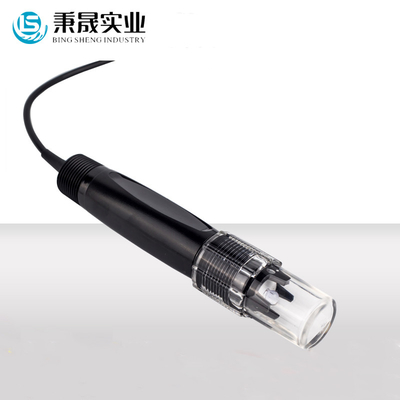

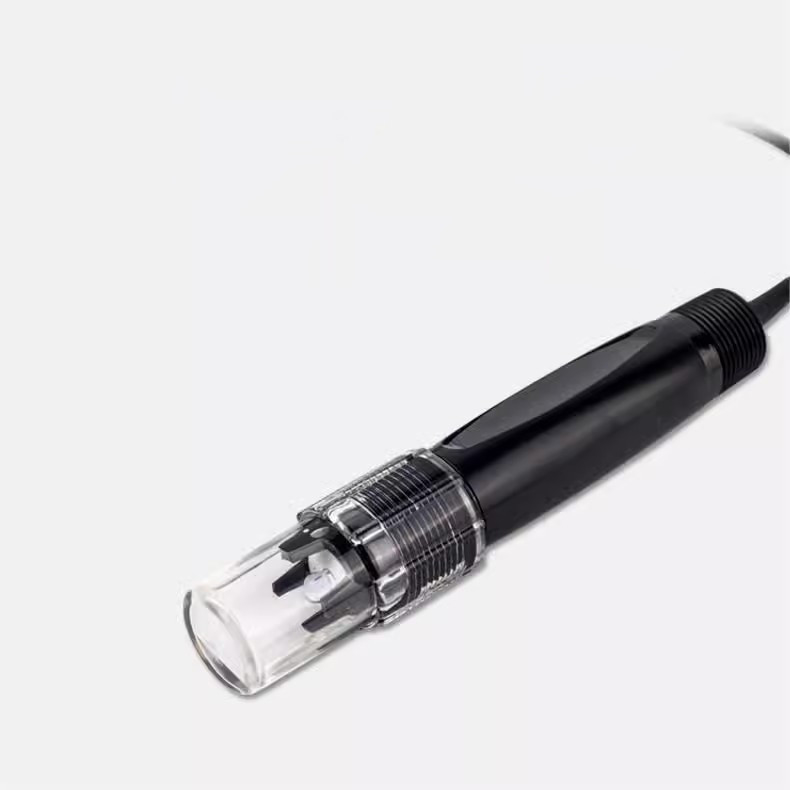

Online Water Sensor/Probe/Electrode pH Meter with Automatic Temperature Compensation
Product Details:
| Place of Origin: | Henan, China |
| Brand Name: | BINGSHENG |
| Model Number: | BSK-PH-100 |
Payment & Shipping Terms:
| Price: | Discussion |
|---|
|
Detail Information |
|||
| Warranty: | 1 Year | Customized Support: | OEM, ODM |
|---|---|---|---|
| Usage: | Portable PH Meter | Product Name: | Online Diigital PH Sensor |
| Resolution: | 0.01pH | Power Consumption: | ≤0.5W |
| Temperature Range: | 0-60 Degree | Output: | 4-20mA/RS485 Module |
| Protection Grade: | IP68 | Application: | Water Treatment Industry |
| Temperature Compensation: | Automatic | Cable Length: | 5m Standard Cable, Other Length Can Be Optional; |
| Type: | PH Meter | ||
Product Description
Specification
Product name | Digital Ph sensor |
Resolution | ±0.01 pH |
Accuracy | ±0.02pH |
Waterproof Rate | IP68 |
A: Voltage signal (choose one from 0-2V, 0-5V, 0-10V) | |
B: 4-20mA (current loop) | |
C: RS485 (standard Modbus RTU protocol, device default address: 01) Power supply voltage: 7-24V DC (when the output signal is 0-2V, RS485) 12-24V DC (when the output signal is 0-5V, 0-10V, 4-20mA) (Customizable 3.3-5V DC) | |
Temperature range | Temperature: 0~60℃; Humidity ≤ 85% RH |
Power consumption | ≤ 0.5W |
Cable Length | 5m standard cable, other length can be optional; |
Guarantee Period | 12 months |
Product Description
FEATURES: 1. On-line & real-time monitoring 2. Solid dielectric and PTFE liquid junction, not easy jam, maintenance free 3. High accuracy 4. Simple operation and high reliability 5. IP68 Water proof APPLICATIONS: Environmental protectio,Agriculture,Aquaculture,Water conservancy,Sewage treatment
