Conductivity and dissolved oxygen monitoring with customizable ORP meter electrode
Product Details:
| Place of Origin: | Henan, China |
| Brand Name: | BINGSHENG |
| Model Number: | BSK-ORP-100 |
Payment & Shipping Terms:
| Price: | Discussion |
|---|---|
| Packaging Details: | A5 standard export carbon |
| Supply Ability: | 10000 Piece/Pieces per Month |
|
Detail Information |
|||
| Warranty: | 1 Year | Customized Support: | OEM, ODM |
|---|---|---|---|
| Product Name: | Digital ORP Sensor | Resolution: | 1mV |
| Data Communication: | Rs485(MODBUS-RTU) | Temp Measure Range: | 0.0~60.0℃,≤ 85% RH |
| Power Consumption: | ≤ 0.5W | Applicable Scope: | Environmental Protection, Sewage, Online Detection |
| Accuracy: | ±0.02pH | Type: | ORP Sensor |
Product Description
Product Description
FEATURES: 1.Adopt solid electrolyte, 0.4MPa pressure.
2.Easy to use without adding electrolyte.
3.Solid electrolyte salt bridge can prevent electrode poisoning effectively, such as S²ˉ,CNˉ.
4.Adopt antifouling annular Teflon liquid junction, hard to clog, long-term online detection.
5.Adopt different sensitive membrane electrode for PH measurement under various conditions. Low inner resistance electrode, fast response and high stability.
6.Adopt standard Pg13.5 screw thread, suitable for piping erection.
2.Easy to use without adding electrolyte.
3.Solid electrolyte salt bridge can prevent electrode poisoning effectively, such as S²ˉ,CNˉ.
4.Adopt antifouling annular Teflon liquid junction, hard to clog, long-term online detection.
5.Adopt different sensitive membrane electrode for PH measurement under various conditions. Low inner resistance electrode, fast response and high stability.
6.Adopt standard Pg13.5 screw thread, suitable for piping erection.

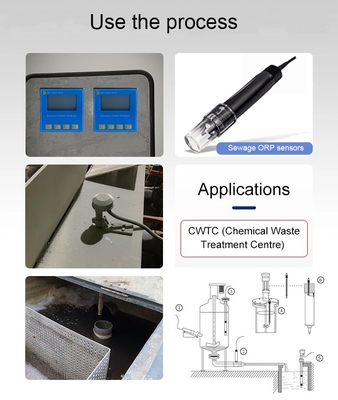

Working principle: Electrochemical sensor Applicable scenarios: sewage, river water, secondary water supply, lake water monitoring
Specification
Product name | Digital sensor |
Resolution | ±0.01 pH |
Accuracy | ±0.02pH |
Waterproof Rate | IP68 |
A: Voltage signal (choose one from 0-2V, 0-5V, 0-10V) | |
B: 4-20mA (current loop) | |
C: RS485 (standard Modbus RTU protocol, device default address: 01) Power supply voltage: 7-24V DC (when the output signal is 0-2V, RS485) 12-24V DC (when the output signal is 0-5V, 0-10V, 4-20mA) (Customizable 3.3-5V DC) | |
Temperature range | Temperature: 0~60℃; Humidity ≤ 85% RH |
Power consumption | ≤ 0.5W |
Cable Length | 5m standard cable, other length can be optional; |
Guarantee Period | 12 months |
