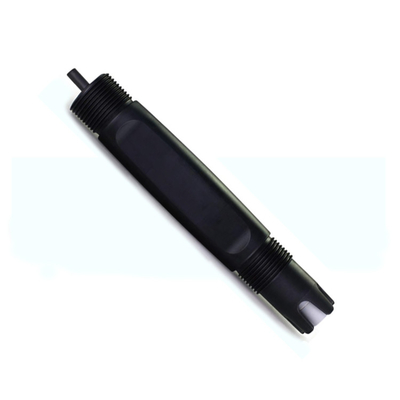

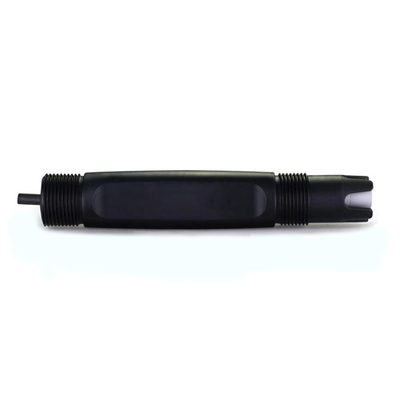

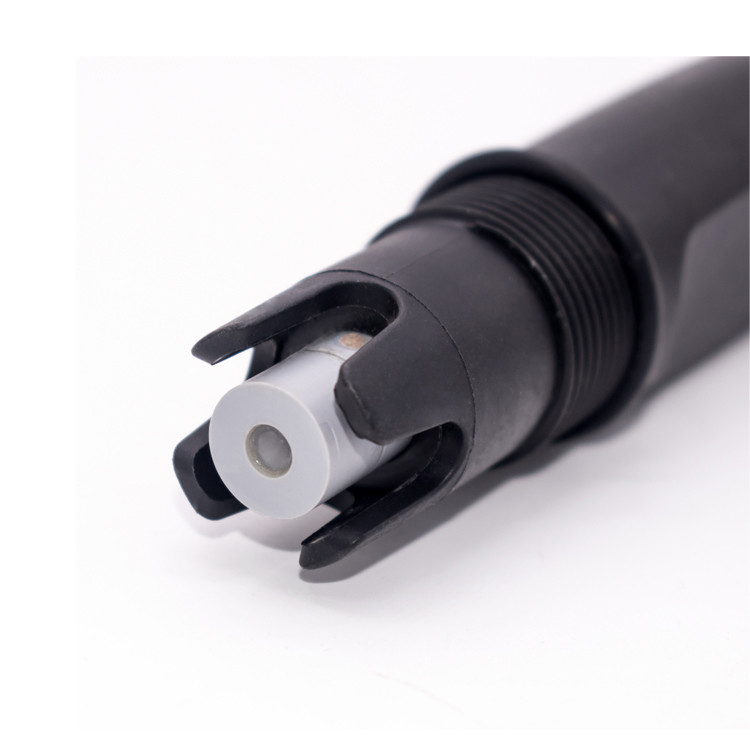

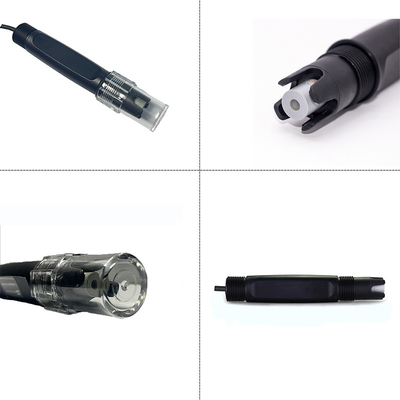

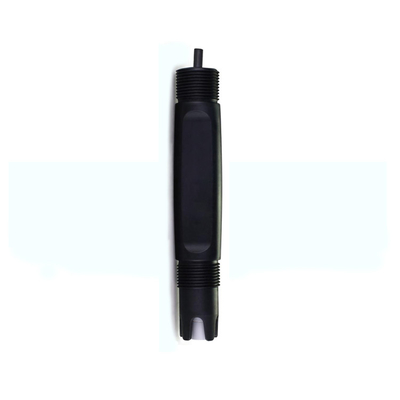

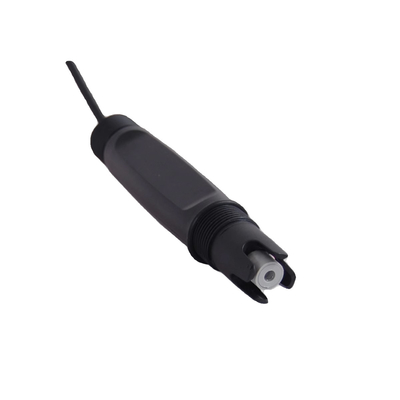

DC12-24V Nitrite Nitrate Meter for Ammonia Water Testing Online NH3 NH4 Probe Sensor
Product Details:
| Place of Origin: | China |
| Brand Name: | BS |
Payment & Shipping Terms:
| Minimum Order Quantity: | 5 pieces |
|---|---|
| Price: | Discussion |
| Packaging Details: | A5 standard export carbon |
| Supply Ability: | 10000 Piece/Pieces per Month |
|
Detail Information |
|||
| Warranty: | 1 Years | Customized Support: | OEM, ODM |
|---|---|---|---|
| Product Name: | Digital Online Ion Sensor | Ions Type: | F -,Cl -,Ca 2+ ,NO3 -,NH4+ ,K+, NO2 - R |
| Measurement Range: | 0~100.00mg/L | Resolution: | 0.01mg/L |
| Repeatability: | 0.02 | Response Time: | ≤ 20s |
| Working Environment: | 0 To 60 ° C; Humidity<85% RH | Working Voltage: | DC12~24V |
| Working Principle: | Ion Selection Method | ||
Product Description
Specification
Power/Outlet | 9~36VDC/RS485 MODBUS |
Measuring method | Ion electrode method |
Housing material | PP |
Size | 30mm* 160mm |
Waterproof rating | IP68 |
Measurement range | 0~1000mg/L (Customizable) |
Resolution | 0.1mg/L |
Accuracy | ±2.5% |
Pressure range | ≤0.3Mpa |
Temperature compensation | NTC10K |
Temperature range | 0-50℃ |
Calibration | Sample calibration, standard liquid calibration |
Connection methods | 4 core cable |
Cable length | Standard 10m cable or extend to 100m |
Mounting thread | NPT3/4’’ |
Application | General application, river, lake, drinking water environmental protection, etc. |
Product Description
Working principle: Ion selection method: RS485-NH Digital Ammonium Nitrogen Ion Sensor Ion selective electrode is a kind of electrochemical sensor that uses membrane potential to measure the activity or concentration of ions in the solution. When it comes into contact with the solution containing the ions which are to be measured, it will generate contact with the sensor at the interface between its sensitive membrane and the solution. Ion activity is directly related to membrane potential. Ion selective electrodes are also called membrane electrodes. This type of electrode has a special electrode membrane that selectively responds to specific ions. The relationship between the potential of the electrodemembrane and the ion content to be measured conforms to the Nernst formula. This type of electrode has the characteristics of good selectivity and short equilibrium time, making it the most commonly used indicator electrode for potential analysis. APPLICATIONS: 1. RS-485-NH Ammonium Ion sensor is solid membrane ion selective electrodes, used to test ammonium ions in water, which can be fast, simple, accurate and economical; 2. The design adopts the principle of single-chip solid ion selective electrode, with high measurement accuracy; 3. PTEE large-scale seepage interface, not easy to block, anti-pollution Suitable for wastewater treatment in the semiconductor industry, photovoltaics, metallurgy, etc. and pollution source discharge monitoring; 4. High-quality imported single chip, accurate zero point potential without dri
